Cabinet Stay – Heavy
By
Additional information
| By Brand | Blum |
|---|
₹570.00
Cabinet Stay – Heavy
Specially designed for cabinet shutter which supports the door and keeps it open
Ideal for overhead cabinet shutters.

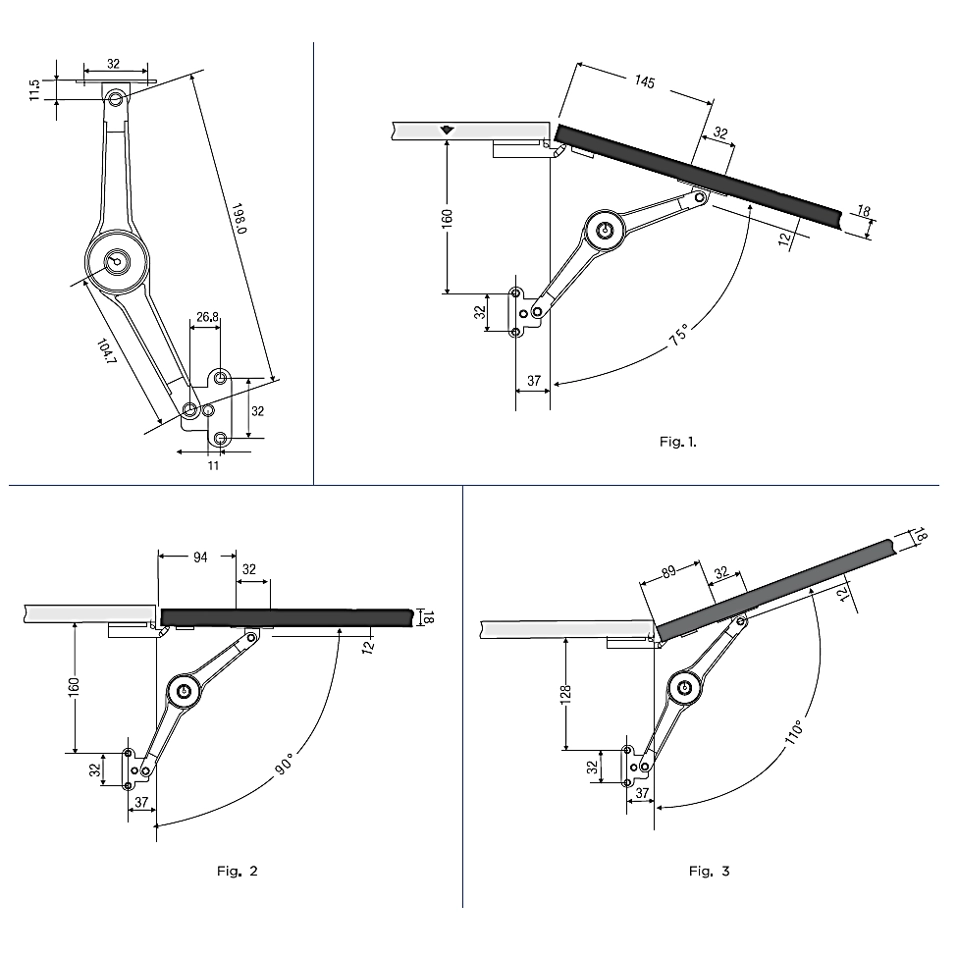

Flexible to mount for three different opening angles – 75º, 90º & 110º.
Pressure can be adjusted with Allen key.
Recommended to use with ‘Ebco’ Slip on Click on Hinges (Overlay)
Max. recommended shutter size with one stay – 900 x 450 x 18mm
Max. recommended shutter size with two stays – 900 x 650 x 18mm
Max. Shutter Load with one stay – 6 Kgs
Max. Shutter Load with two stays – 13.3 Kgs
System 32 compatible.
Manufactured out of Zinc alloy and Nickel Plated.
Max. opening angle should not exceed more than 105º
